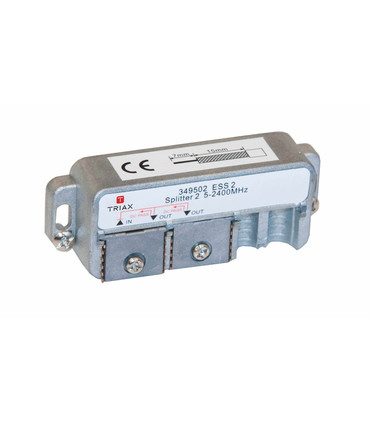

Repartidor 5-2400 MHz de 2/3/4/6/8 salidas, Conectores tipo Clema, Paso de Corriente, Triax ESS
Repartidor para señales de terrestre y satélite de 2, 3, 4, 6 u 8 salidas.
Pérdida en 2 y 3 salidas (5 / 2400 MHz): 4.2 / 7 dB.
Pérdida en 4 salidas (5 / 2400 MHz): 8.5 / 12 dB.
Pérdida en 6 salidas (5 / 2400 MHz): 11.5 / 17.5 dB.
Pérdida en 8 salidas (5 / 2400 MHz): 12 / 18.5 dB.
Permite el paso de corriente de Salidas – Entrada.
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Repartidor/Splitter disponible en 2, 3, 4, 6, y 8 salidas para terrestre y satélite (5-2400MHz). Paso de corriente en todos los puertos de salida al puerto de entrada (1A máx. 30V). Conector tipo clema, ligero y compacto de conexión rápida. Instalación para interior. Carcasa de Zinc.
Características en todos los modelos:
Rango Frecuencia: 5...2400 MHz
Blindaje efectivo VHF/UHF: > 85.0 dB
Impedancia: 75 Ω
Aplicación: SAT, MATV 2.4Ghz +DC
Paso DC: Sí (30VDC / 1A) Salida - Entrada
Ambiente: Interior
Tipo de Conector: Tipo Clema (S&C)
Especificaciones técnicas:
| PÉRDIDA DE INSERCIÓN |
|||||
| MHz |
5 / 1000 | 40 / 1000 | 1000 / 1750 | 1750 / 2150 | 2150 / 2400 |
|
2 salidas |
< 4.2 dB | < 4.8 dB | < 5.5 dB | < 6.2 dB | < 7.0 dB |
|
3 salidas |
< 4.2 dB | < 4.8 dB | < 5.5 dB | < 6.2 dB | < 7.0 dB |
|
4 salidas |
< 8.5 dB | < 9.0 dB | < 10.5 dB | < 11.5 dB | < 12.0 dB |
|
6 salidas |
< 11.5 dB | < 12.5 dB | < 14.0 dB | < 16.5 dB | < 17.5 dB |
|
8 salidas |
< 12.0 dB | < 13.0 dB | < 15.5 dB | < 18.0 dB | < 18.5 dB |
| AISLAMIENTO |
|||||
| MHz |
5 / 1000 | 40 / 1000 | 1000 / 1750 | 1750 / 2150 | 2150 / 2400 |
|
2 salidas |
> 18.0 dB | > 21.0 dB | > 21.0 dB | > 20.0 dB | > 20.0 dB |
|
3 salidas |
> 18.0 dB | > 21.0 dB | > 21.0 dB | > 20.0 dB | > 20.0 dB |
|
4 salidas |
> 20.0 dB | > 21.0 dB | > 20.0 dB | > 20.0 dB | > 20.0 dB |
|
6 salidas |
> 20.0 dB | > 21.0 dB | > 20.0 dB | > 20.0 dB | > 20.0 dB |
|
8 salidas |
> 20.0 dB | > 21.0 dB | > 20.0 dB | > 20.0 dB | > 20.0 dB |
| PÉRDIDA DE RETORNO |
|||||
| MHz |
5 / 1000 | 40 / 1000 | 1000 / 1750 | 1750 / 2150 | 2150 / 2400 |
|
2 salidas |
> 12.0 dB | > 11.0 dB | > 10.0 dB | > 10.0 dB | > 10.0 dB |
|
3 salidas |
> 12.0 dB | > 11.0 dB | > 10.0 dB | > 10.0 dB | > 10.0 dB |
|
4 salidas |
> 10.0 dB | > 11.0 dB | > 10.0 dB | > 10.0 dB | > 10.0 dB |
|
6 salidas |
> 10.0 dB | > 11.0 dB | > 10.0 dB | > 10.0 dB | > 10.0 dB |
|
8 salidas |
> 10.0 dB | > 11.0 dB | > 10.0 dB | > 10.0 dB | > 10.0 dB |
