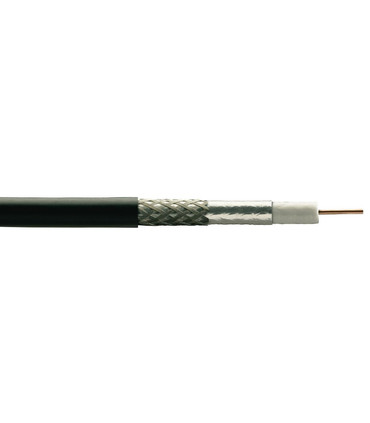

Cable Coaxial para Interior de 10.3mm de Diámetro Exterior, Conductor Interno de CCS, Euroclase FCA, Fte
Cable Coaxial para uso en interior con un diámetro de 10.3 mm.
Conductor interno de acero revestido de cobre con un diámetro de 1.63 mm.
Lámina de apantallamiento de doble aluminio y polietileno
Malla de aluminio de 128 hilos trenzados.
Women's clothing size
Size | XS | S | M | L |
---|---|---|---|---|
Euro | 32/34 | 36 | 38 | 40 |
USA | 0/2 | 4 | 6 | 8 |
Bust(in) | 31-32 | 33 | 34 | 36 |
Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
Waist(in) | 24-25 | 26 | 27 | 29 |
Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
Hips(in) | 34-35 | 36 | 37 | 39 |
Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Cable Coaxial de interior de 10.3mm de diámetro exterior, su conductor interno es de CCS de 1.63mm de diámetro, Euroclase tipo FCA.
Reacción al fuego (CPR): Euroclase FCA
Apantallamiento (30 - 900 MHz): > 90 dB
Impedancia: 75 ohmios
Conductor interno |
|
1.13 mm – CCS |
|
Dieléctrico |
|
7.24 mm - PE
|
|
Lámina de apantallamiento |
|
Al / PET / Al |
|
Trenzado |
|
16 x 8 x 0.12 mm - Al - 128 hilos |
|
Cubierta exterior |
|
10.3 mm - PVC Blanco
|
|
Atenuación |
|
47 MHz
175 MHz
470 MHz
862 MHz
950 MHz
1350 MHz
1750 MHz
2150 MHz
|
2.9 dB 5.2 dB 8.6 dB 12.3 dB 12.9 dB 15.8 dB 20.7 dB 38.98 dB |
Nomenclatura:
Al: Aluminio
CCS: Acero revestido de cobre
PE: Polietileno
PET: Polietileno tereftalato
