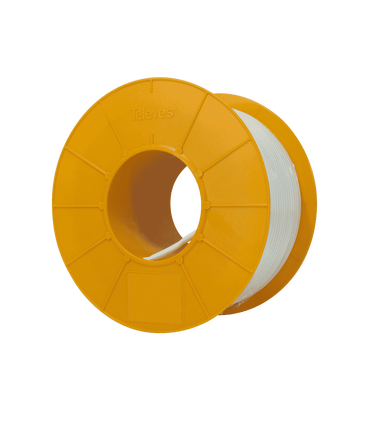

Cable Coaxial para Interior de 6.6mm de Diámetro Exterior, Conductor Interno de Cu, Euroclase ECA, Televés T100Plus
Cable Coaxial con vivo y malla fabricados en cobre, de 6.6 mm de diámetro exterior.
Doble blindaje con lámina anti migratoria para evitar la humedad al interior del cable.
Impedancia característica de 75 ohm.
Women's clothing size
Size | XS | S | M | L |
---|---|---|---|---|
Euro | 32/34 | 36 | 38 | 40 |
USA | 0/2 | 4 | 6 | 8 |
Bust(in) | 31-32 | 33 | 34 | 36 |
Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
Waist(in) | 24-25 | 26 | 27 | 29 |
Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
Hips(in) | 34-35 | 36 | 37 | 39 |
Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Cable Coaxial T100Plus de clase B para interior de 6.6mm con doble blindaje y con lámina anti migratoria que evita la migración de los aditivos d la cubierta y la humedad al interior del cable, evitando así el deterioro de sus características.
Características:
Modelo: T100 plus
Clase: B
Euroclase: ECA
Estándar: EN 50117-2-4
Impedancia de Transferencia (5-30MHz): ≤15 mOhm/m
Velocidad de propagación (mín.): 82%
Impedancia: 75 ohm
Radio de curvatura mínimo: 33.5 mm
Blindaje a 1GHz: >75 dB
Capacidad: 55 pF/m
Lámina anti migratoria: Sí
Petro-Gel: No
Conductor central |
|
1.13 mm – Cu (Cobre) Resistencia ohm/Km <20 |
|
Dieléctrico |
|
4.8 mm – PEE Lámina interior (Cobre + Poliéster) |
|
Malla |
|
16 x 4 x 0.10 – Cu Resistencia ohm/Km <20 Cobertura 38% |
|
Cobertura exterior |
|
6.6 mm - PVC |
|
Atenuaciones (dB/m) |
|
5 MHz |
0.01 |
47 MHz |
0.04 |
90 MHz |
0.05 |
200 MHz |
0.08 |
500 MHz |
0.13 |
800 MHz |
0.16 |
1000 MHz |
0.19 |
1350 MHz |
0.22 |
1750 MHz |
0.25 |
2050 MHz |
0.28 |
2300 MHz |
0.30 |
