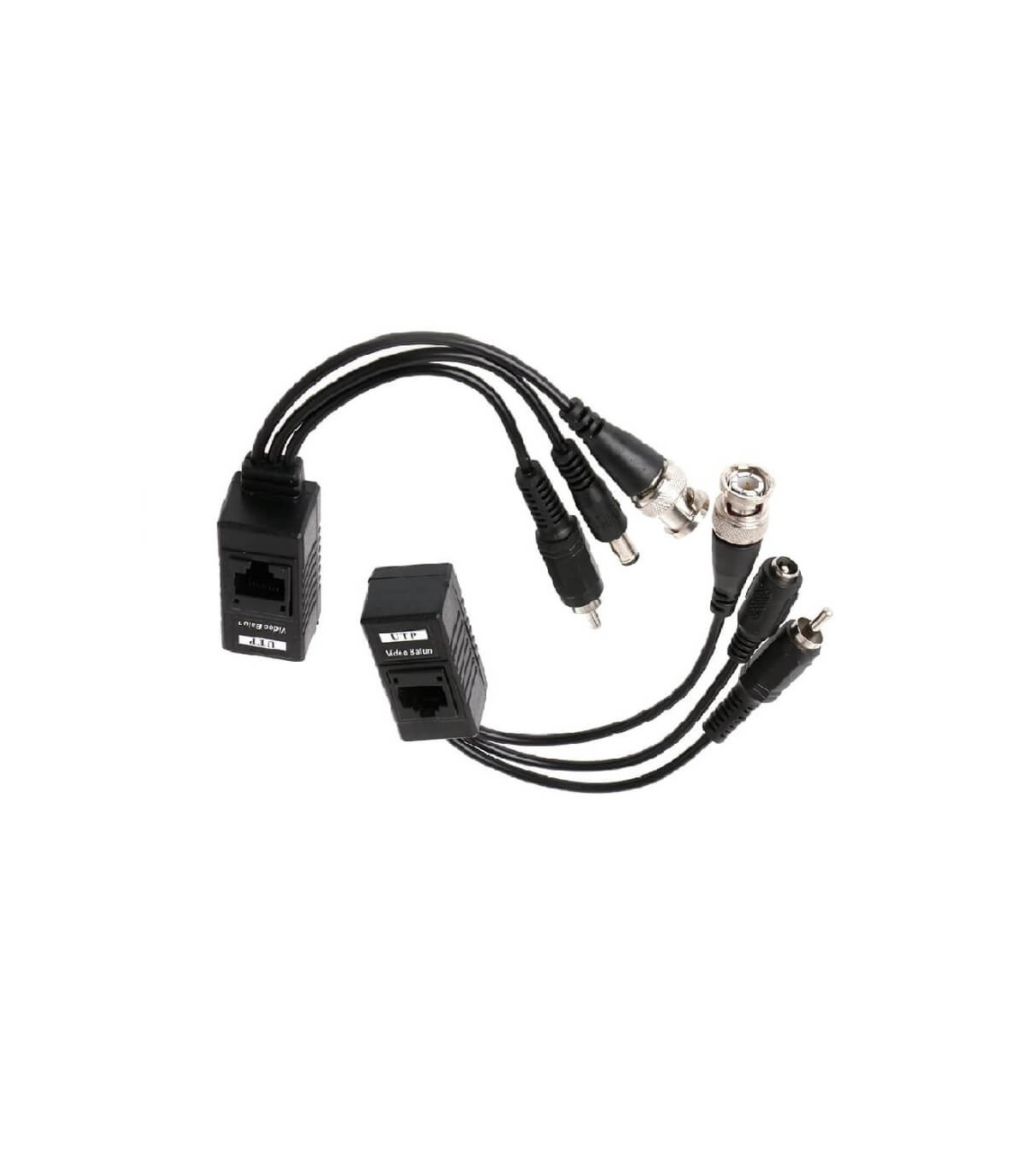

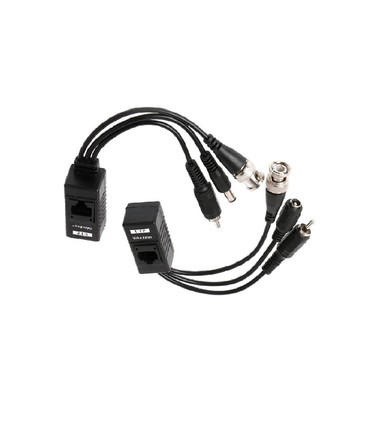

Pareja de Balun en Latiguillo con Alimentación y Audio, Transmisión mediante RJ45 del Cable de Red Cat.5/5e/6
Pareja de transceptor de vídeo pasivo (Balun) en latiguillo con conectores de alimentación y audio. Conexión mediante el conector RJ45.
Compatible con TVI/AHD/CVI/CVBS (720P / 1080P).
Protección contra descargas electroestáticas.
Women's clothing size
Size | XS | S | M | L |
---|---|---|---|---|
Euro | 32/34 | 36 | 38 | 40 |
USA | 0/2 | 4 | 6 | 8 |
Bust(in) | 31-32 | 33 | 34 | 36 |
Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
Waist(in) | 24-25 | 26 | 27 | 29 |
Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
Hips(in) | 34-35 | 36 | 37 | 39 |
Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
Pareja de Balun con conector de Alimentación y conector RCA. La alimentación, audio y señal de vídeo se transmiten por el cable de red Cat.5/5e/6 conectado al RJ45 del balun.
Especificaciones técnicas |
|
Señal de transmisión
|
1 canal |
Distancia de transmisión
|
0 – 300 m |
Tipo de cable
|
UTP Cat. 5 / 5E / 6 |
Conector coaxial de vídeo
|
BNC macho |
Conector cable de datos
|
Conexión de un par |
Formatos compatibles
|
AHD / HDCVI / HDTVI / CVBS (720p / 1080p) |
Protección interferencias
|
> 60 dB |
Descarga electrostática
|
1a, 1b Descarga electricidad por contacto nivel 3 |
Protección del conector del cable coaxial
|
2 kV (par común) IEC 61000-4-5 |
Protección del cable UTP
|
2 kV (par distinto) 4 kV (par común) IEC 61000-4-2 |
Impedancia BNC
|
75 Ω |
Impedancia cable UTP
|
100 Ω |
Material
|
Plástico ABS |
